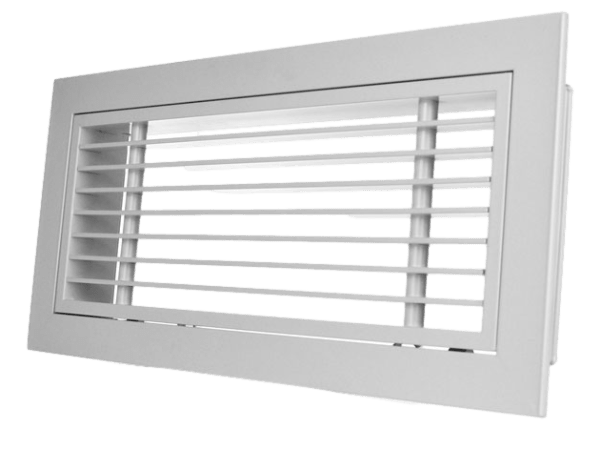

A clean, architectural linear bar grille with removable core, designed for wall-mounted supply air applications.

The quick-release removable core provides easy access behind the grille for installation, cleaning and maintenance, while the fixed 0° blades provide a straight-through air pattern.

Ordering & Sizing

Nominal Size: 600 × 100mm
Actual Neck Size: 590 × 90mm
Overall Face Size: 630 × 130mm

When ordering: Grille sizes are based on the nominal neck size. The actual neck is 10mm smaller than nominal to provide installation clearance.

Features

• Quick-release removable core
• Fixed 0° linear blades
• 12.5mm blade pitch
• 2.5mm thick blades
• Extruded aluminium construction
• White powder-coated finish
• Suitable for wall mounting
• Designed for supply air applications
• Concealed fixing arrangement
• Suitable for residential and commercial HVAC systems

Specifications

Specification	Details
Product Code	RCBG244
Nominal Neck Size	600 × 100mm
Actual Neck Size	590 × 90mm
Overall Face Size	630 × 130mm
Grille Depth	50mm
Flange Width	25mm
Construction	Extruded aluminium
Blade Thickness	2.5mm
Blade Pitch	12.5mm
Blade Deflection	0°
Finish	White powder coat
Removable Core	Yes
Dampenable at Grille Face	No
Application	Supply air
Mounting	Wall

Airflow Performance

The manufacturer provides tested performance data for the RCBG244 across face velocities from 1 to 8 m/s, including airflow, throw, pressure drop and NC sound rating.

For the 600 × 100 RCBG244, the published data includes:

Face Velocity	Airflow	Throw	Pressure Drop	NC
1 m/s	42 L/s	1.4 m	1 Pa	<15
2 m/s	85 L/s	2.4 m	4 Pa	<15
3 m/s	127 L/s	3.6 m	10 Pa	<15
4 m/s	170 L/s	4.8 m	18 Pa	18

That performance table is particularly useful. At our usual 2 m/s supply-air design point, this grille is around 85 L/s, with only 4 Pa pressure drop and an NC rating below 15 according to the supplier's test data.

Installation Note

The grille has fixed 0° blades and does not provide airflow adjustment at the grille face. Where airflow balancing is required, a suitable balancing damper should be installed within the duct system.
