Fixed Louvre Grille – White – 150mmØ

Product Code: VENTFIXLG150

Product Overview

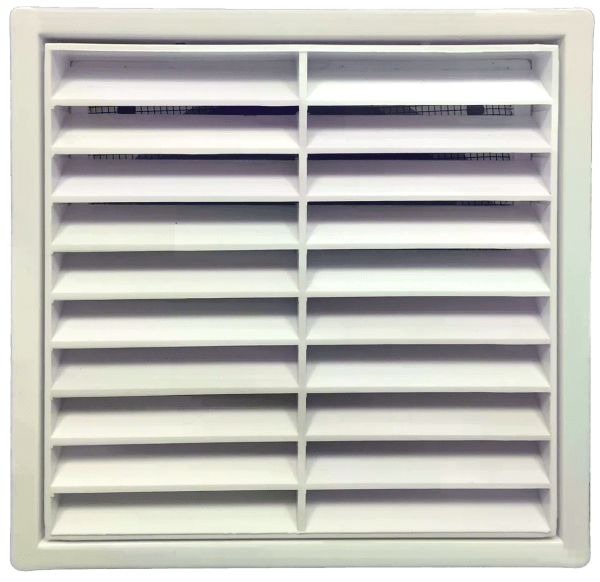

White 150mm fixed louvre grille designed for general ventilation, exhaust air and fresh-air applications.

Manufactured from durable ABS plastic, the grille has a scratch-resistant surface and fixed horizontal louvres. It can be used for both internal and external applications and is suitable for wall or ceiling mounting.

The rear of the grille incorporates a tapered 150mm neck, allowing ductwork to connect directly to the grille without requiring a separate adaptor.

A stainless steel insect mesh is fitted behind the louvres to help prevent insects and larger debris entering the duct system.

Features

• Fixed horizontal louvre design
• Durable ABS plastic construction
• Scratch-resistant surface
• 150mm tapered rear neck for direct duct connection
• Stainless steel insect mesh
• Suitable for internal and external applications
• Suitable for wall or ceiling mounting
• Supplied with 4 fixing screws
• White finish

Specifications

Specification	Details
Product Code	VENTFIXLG150
Grille Type	Fixed Louvre
Neck Size	150mmØ
Face Size	175 × 175mm
Material	ABS plastic
Colour	White
Insect Mesh	Stainless steel
Duct Connection	Tapered rear neck
Mounting	Wall or ceiling
Application	Internal or external
Fixings	4 screws supplied

Applications

Suitable for use with 150mm ducted ventilation systems, including:

• Bathroom and general exhaust ventilation
• Fresh-air intake
• General room ventilation
• Wall-mounted duct outlets
• Ceiling-mounted duct outlets

Duct Connection

The grille has a 150mm tapered neck located at the rear, designed to allow ductwork to be connected directly to the grille.

This makes it a compact option where a separate grille boot or adaptor is not required.

Construction

The grille is manufactured from white ABS plastic for a lightweight, durable finish. The fixed louvre face provides a clean appearance while helping shield the duct opening from direct view.

A stainless steel insect mesh is positioned behind the louvres for additional protection when the grille is used in external ventilation applications.
