Heat Transfer System One Room Add-On Kit

HT01ADD One-Room Heat Transfer Add-On Kit

Add an Extra Room to Your Airflow Heat Transfer System

The Airflow HT01ADD One-Room Heat Transfer Add-On Kit provides the components required to extend an existing Airflow Heat Transfer System to one additional room.

The kit includes a 150mm Y branch to divide an existing duct run, 6 metres of insulated flexible ducting, and a 150mm downjet ceiling diffuser to distribute the transferred warm air into the additional room.

The downjet diffuser directs warm air downward towards the occupied area rather than allowing it to remain at ceiling level. It also incorporates an adjustable damper, allowing the airflow to the additional room to be balanced with the rest of the system.

Kit Includes

• 1 × 150mm Downjet Ceiling Diffuser with Adjustable Damper
• 1 × 150mm × 6m Insulated Flexible Duct
• 1 × 150-150-150mm Equal Y Branch

Components

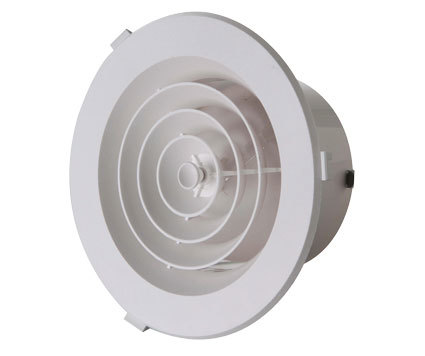

150mm Downjet Ceiling Diffuser

Designed to direct transferred warm air downward into the room for effective air distribution. The integrated adjustable damper allows airflow to be balanced to suit the room and existing heat transfer system.

150mm Insulated Flexible Duct

Supplied in a 6 metre length, the insulated flexible duct provides the additional duct run between the existing system and the new room.

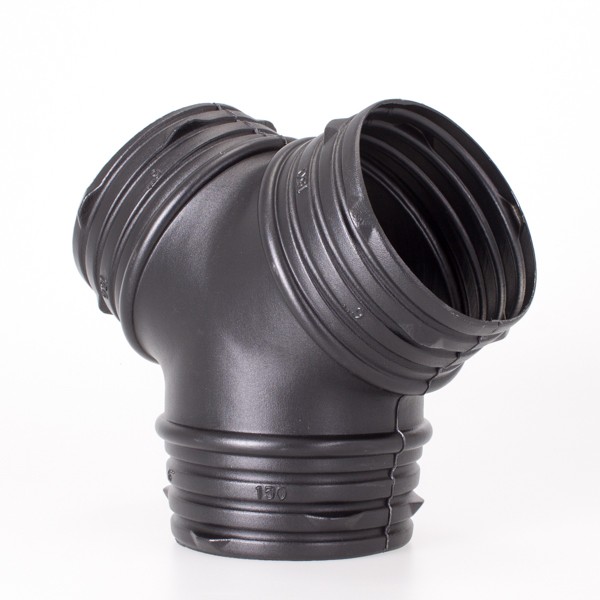

150-150-150mm Equal Y Branch

The Y branch divides one 150mm duct run into two 150mm branches, allowing the additional room to be connected to the existing system.

Important to Know

The HT01ADD is an add-on kit only and does not include a fan, intake grille or thermostat.

Before adding additional rooms, consideration should be given to the capacity of the existing heat transfer system and the additional duct length required.
